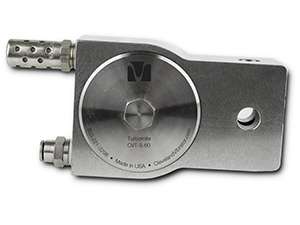

Turbomite CVT-P Series Turbine Vibrators CVT-S-60
Sign In/Register to see pricing
SKU: 3903060
In Stock: 0
New Stock: 03/12/2025
Lead Time: 100
Request QuoteThe Cleveland Vibrator Co. CVT-P line of pneumatic turbine industrial vibrators feature Acetal plastic and laser etched #304 stainless steel construction while the CVT-S line are designed using stainless steel construction. Our turbine design is unparalleled in efficiency with optimal force-to-weight and force-to-air consumption ratios 2x to 4x better than competitors and remarkably low noise levels.
DURABLE - ultra efficient use of air for force production make these units last long, even in continuous duty
SAFE - turbine design produces virtually no noise while pneumatic power allows for operation in hazardous areas
VERSATILE - design allows for start and run at low pressure and mounting at any angle on your bins, hoppers, chutes, feeders and tracks. A wide variety of force outputs from 7 lbs. to 146 lbs. make them ideal for precise small jobs on materials between 25 lbs. and 1000 lbs.
EASY - comes with mounting fasteners for a quick set-up
Click the button at left to order the turbine vibrator that your operation requires, or contact us now to learn how our industrial vibrators can best suit your needs.
Click the button at left to order the turbine vibrator that your operation requires, or contact us now to learn how our industrial vibrators can best suit your needs.

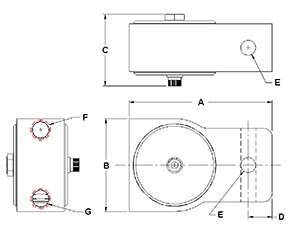

CVT-S-60
A
4-1/8" (10.5cm)
B
2-11/16" (5.2cm)
C
2-1/16" (5.2cm)
D
11/16" (1.7cm)
E
7/16" (1.1cm)
F
1/4" NPT
G
1/4" NPT
Weight
2.60 lbs
Unbalance
.12 in-lbs (.14 cm-kg)
AIR CNSMP @ 80 psi ; 5.4bar
3.6 cfm ; 101.2 lpm
FREQ. @ 80 psi ; 5.4bar
6560 VPM
Force @ 80 psi ; 5.4 bar
146.8 lbs.
