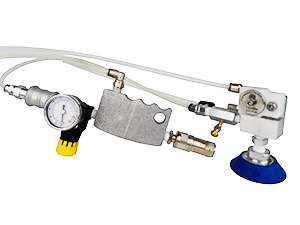

Turbine Vibrator Vacuum Mount Series CVT-P-10 Mini Vacuum Mounted Vibrator
Sign In/Register to see pricing
SKU: 57001010
In Stock: 0
New Stock: 12/07/2024
Lead Time: 5
Request QuoteCleveland Vibrator's New Mini Vacuum Mount Series is perfect for applications where a permanent installation is not possible and mounts to any smooth surface. Serving as a vibratory solution for light-weight bulk material load issues, these vibrators are available in an array of models, sizes, forces and frequencies. The small Turbine Vibrator body is fabricated with Acetal plastic and laser etched #304 stainless steel construction and provides a high frequency vibration. Its pneumatic power also enables operation in hazardous environments. A cost efficient option, our Single Stage Vacuum Generator only uses 0.74 CFM air consumption.
SAFE - Pneumatic power enables operation in hazardous environments and features low noise levels during operation
VERSATILE - Completely lightweight and portable. Can be used for many different applications where material flow problems occur
EASY - Hand held controls are easy to use: they include an Integrated Pressure Regulator, a Vibrator on/off switch via Slide Valve & the Vacuum is controlled via Mini Ball Valve attached to the Vacuum Generator
Click on the "BUY ONLINE" button to order the air piston vibrator that your operation requires, or contact us now for more details on our pneumatic industrial vibrators.
See this product in action on our YouTube Channel!
CVT-P-10 Mini Vacuum Mounted Vibrator
A
3-11/16" (9.34 cm)
B
2-7/16" (6.17 cm)
C
4-15/16" (12.52 cm)
D
2" (5.08 cm)
E
2-1/2" (6.35 cm)
F
1/4" OD Tube
Weight
2.25 lbs
Unbalance
.002 in-lbs (.003 cm-kg)
AIR CNSMP @ 60 psi ; 4.1 bar
1.84 cfm (52.1 lpm)
FREQ @ 60 psi ; 4.1 bar
20,500 VPM
