MG Small Load Truck & Trailer Vibrators MG-200 Kit

The Cleveland Vibrator Co.'s line of DC Small Load Truck & Trailer Vibrators have a reputation for promoting consistent material flow in spreaders and small hoppers. Its fully encased motor is designed for protection from environmental elements to ensure maximum uptime and take on the harshest of environments. Keep your mobile equipment and operations running efficiently. The MG-80/200 are continuous duty and IP 66 rated to give you a long product life even in the toughest conditions. Proudly designed & manufactured in the USA.

*Please noteOperation of the vibrators outside of the temperature range labeled may be possible by reducing duty cycle.  Please consult sales with the details of your application.

Manufacturers across North America rely on our DC Truck & Trailer Vibrators because our products are:

DURABLE - it's rugged design allows for protection from environmental elements to ensure it's long life expectancy

SAFE - prevents damage to your trailer or truck by eliminating use of hammers or backhoes to unload - removes safety hazards of trailer or bed entry and human unloading assistance

VERSATILE - it's mobile capabilities offer vibratory options for a variety of applications

EASY - all vibrators come with preinstalled lead cable and mounting fasteners for quick setup

Contact us now to learn how we can best suit your vibratory motor needs for replacement motors or new applications.



The MG-200 kit includes the following:

  • (1) Vibrator Mounting plate w/bolts
  • (1) In-cab toggle switch
  • (1) Toggle switch mounting bracket
  • (1) 25’ of wire
  • (2) #8 ½” L self-tapping zinc screws
  • (1) In-line fuse holder w/wire leads and 20A fuse.
  • (4) Insulated female spade connectors
  • (2) Insulated male spade connector
  • (2) Nylon insulated butt splice
  • (1) 5/16” rubber firewall grommet
  • (6) plastic Zip ties


6000200K

MG-200 Kit

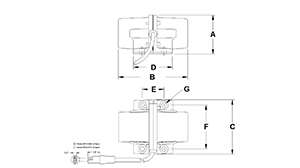

A
3.6"
B
6.3"
C
5.0"
D
4.1"
E
2.0"
F
4.0"
G
0.425"

Weight

7.40 lbs

Force

300 lbf

Frequency

4800 RPM

Recomended Temp. for Operation

-25 F thru 100 F

Duty Cycle

Continuous Duty

Amp Draw @ 12 Volt

14

Hopper Size

2 cu. yd. (3,000 lbs. max)

Protection Rating

IP 66
